What Is Cavity Sliding Door Rollers?

Cavity Sliding Door Rollers are used in doors that slide into a hidden space rather than opening on hinges. This type of system is commonly known as a pocket door, concealed sliding door, or hidden sliding door.

When the door opens, the panel moves into a wall pocket, wardrobe body, cabinet, or recessed frame. The rollers carry or guide the panel along the track. Depending on the structure, they may be installed at the top, bottom, or side of the door.

Common product terms include:

• Cavity Sliding Door Rollers
• Pocket Door Rollers
• Sliding Door Track Wheels
• Concealed Sliding Door Rollers
• Wardrobe Sliding Door Rollers
• Furniture Door Roller Wheels
• Door and Window Sliding Roller Systems

The roller may be small, but it affects the feel of the whole door. Wheel quality, bearing rotation, and track alignment all influence noise, opening force, and panel stability.

How Cavity Sliding Door Rollers Work

The working principle is straightforward. As the door moves, the wheels rotate along the rail. Rolling contact creates less resistance than direct sliding contact, so the panel can travel with less effort.

A complete system normally combines rollers with a track, bracket, guide, stopper, and mounting hardware. Some designs also include height adjustment or a soft-closing device.

Rolling Motion and Bearing Support

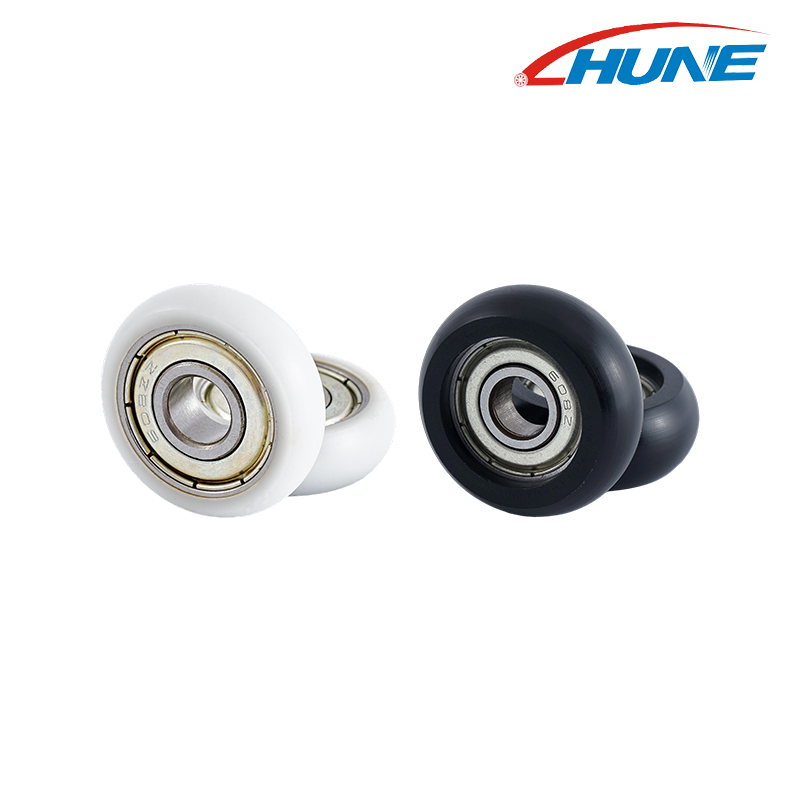

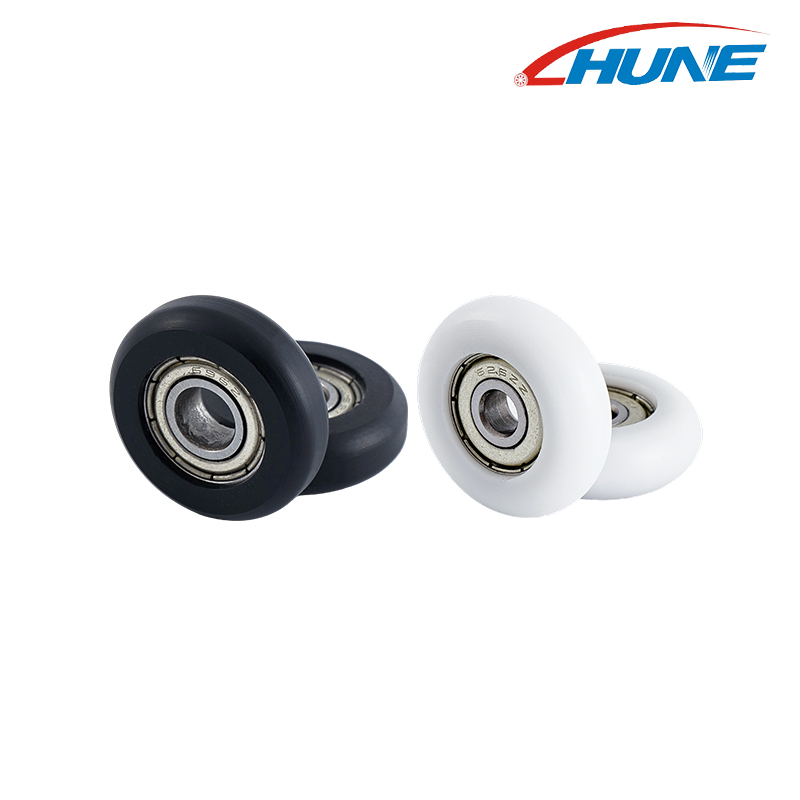

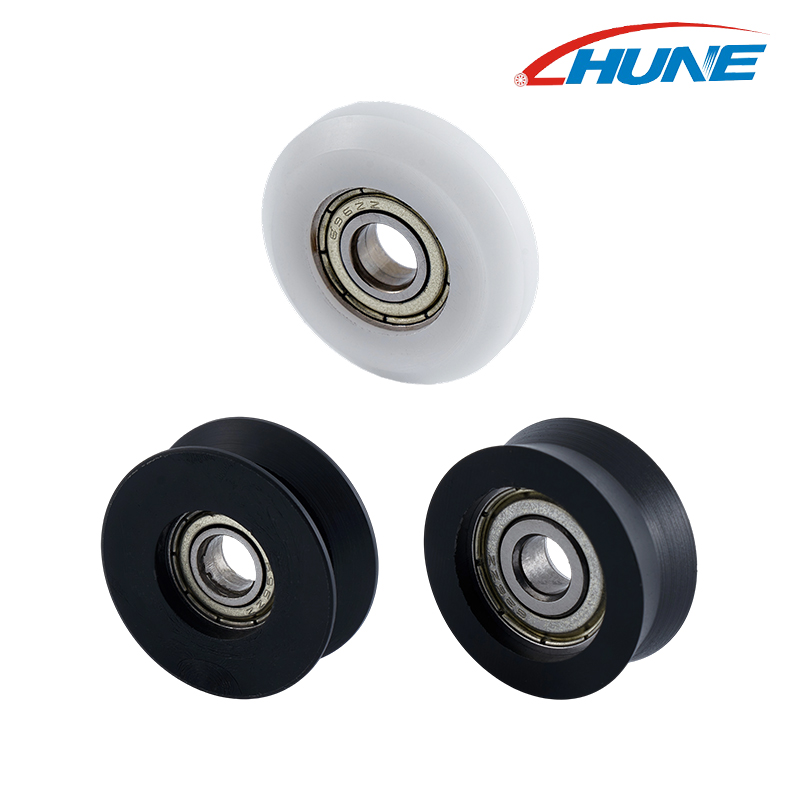

Many Cavity Sliding Door Rollers contain a miniature ball bearing. The bearing rotates around a shaft, screw, or pin while supporting the wheel body.

Nylon, POM, polyurethane, rubber-coated material, and metal are commonly used for the outer wheel. Each produces a different running feel. Rigid wheels maintain their profile well, while softer coatings can reduce vibration and contact noise.

The final design depends on the door weight, wheel diameter, track shape, available space, and frequency of use.

Coordination with Tracks and Guides

Rollers must match the track and guide system. A typical assembly may contain:

• Upper or lower track
• Main supporting rollers
• Floor or side guides
• Limit stoppers
• Anti-sway parts
• Adjustable brackets
• Soft-closing mechanisms

In a hanging door, upper rollers support most of the weight. A floor guide controls the lower edge. In a bottom-running door, lower rollers carry the panel while the upper guide keeps it upright.

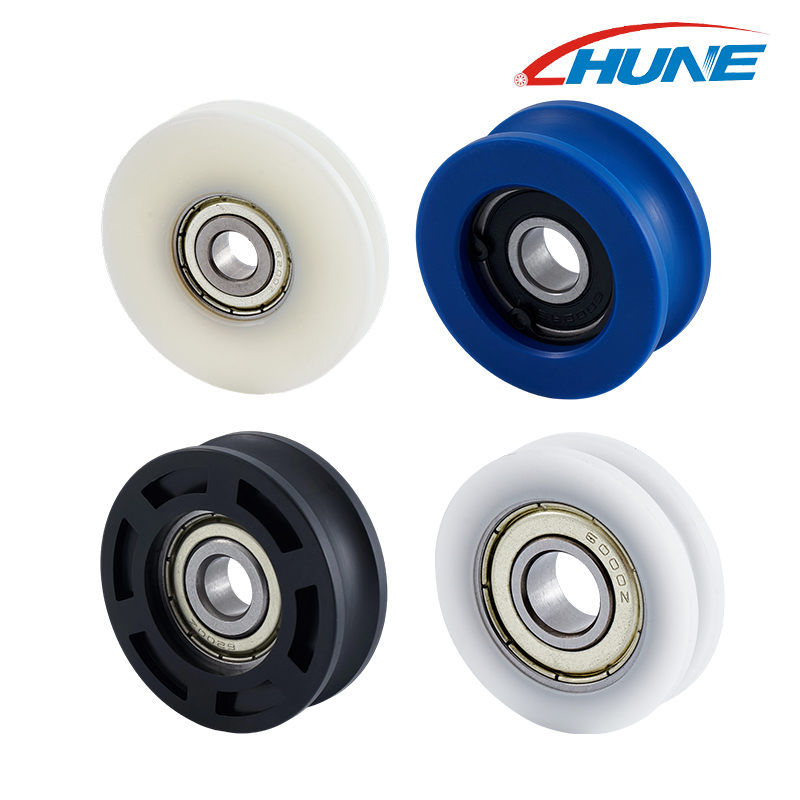

Wheel shape is equally important. Flat, U-shaped, V-shaped, and H-shaped wheels are intended for different rail profiles. A mismatched wheel may wobble, rub against the track, or wear unevenly.

Stability, Load Distribution, and Anti-Sway Control

Free wheel rotation does not automatically mean stable door movement. The panel also needs balanced support and accurate guidance.

For reliable operation, the system should have:

• Even loading between supporting rollers
• Correct contact between the wheel and track
• Enough clearance inside the cavity
• A level and straight rail
• Secure brackets and fasteners
• Properly positioned guides and stoppers

Tall doors are more likely to sway at the lower edge. A suitable guide roller or anti-sway part keeps the panel close to its intended path.

Main Components of Cavity Sliding Door Rollers

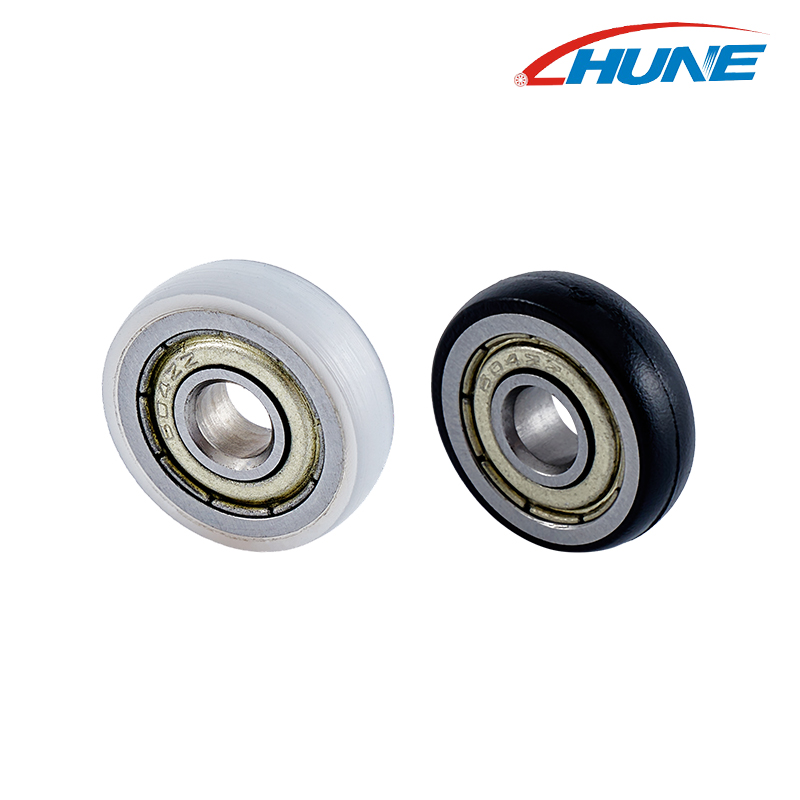

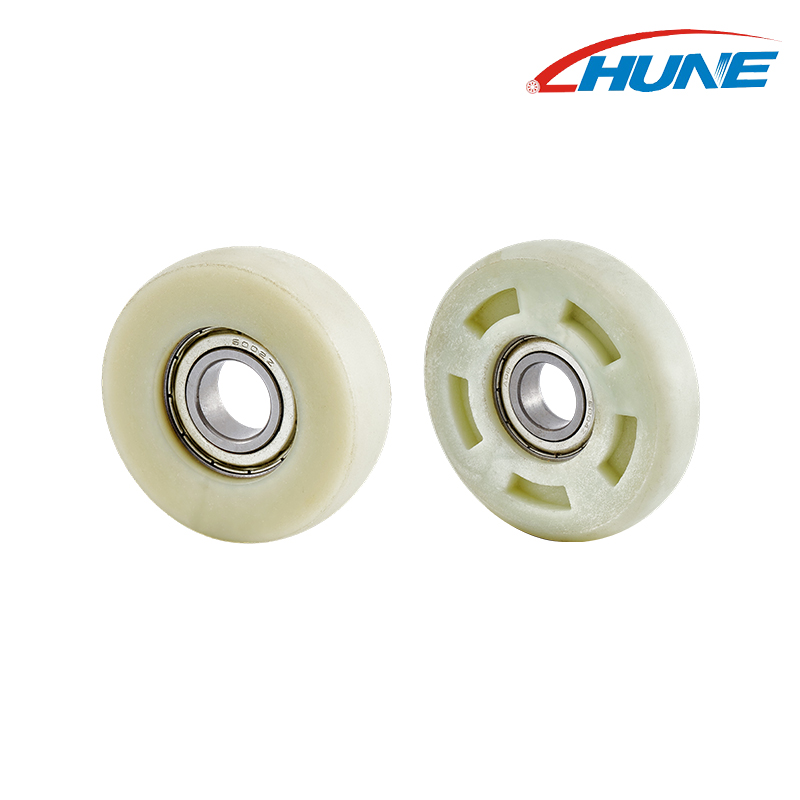

Most cavity roller assemblies contain a wheel, bearing, shaft, and bracket. Adjustable parts, guides, and mounting accessories may be added according to the door structure.

Roller Wheel

The wheel runs directly against the track. Diameter, width, groove, and material affect how the load is carried.

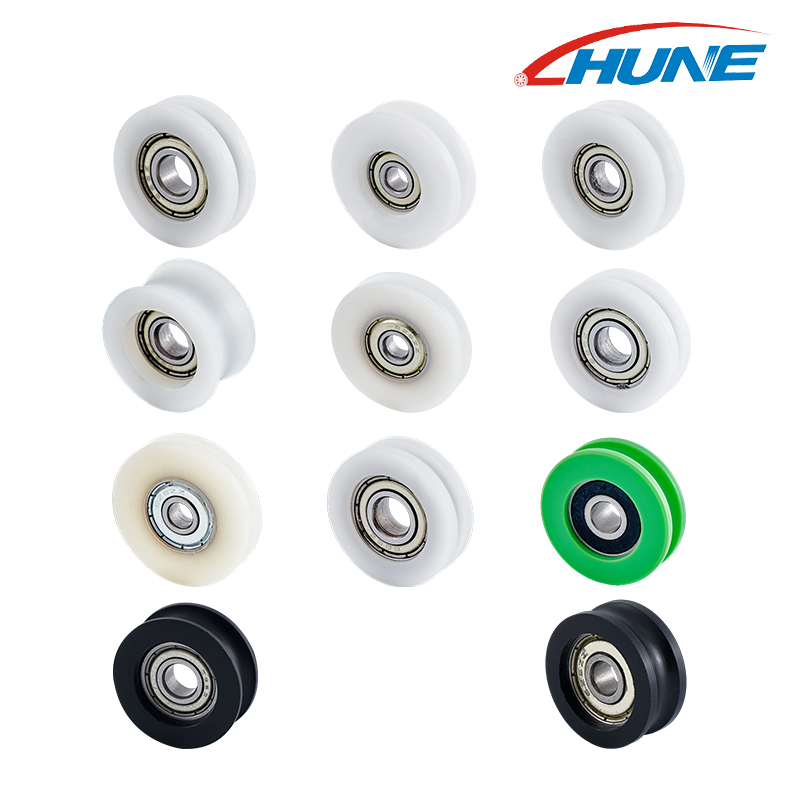

Typical wheel profiles include:

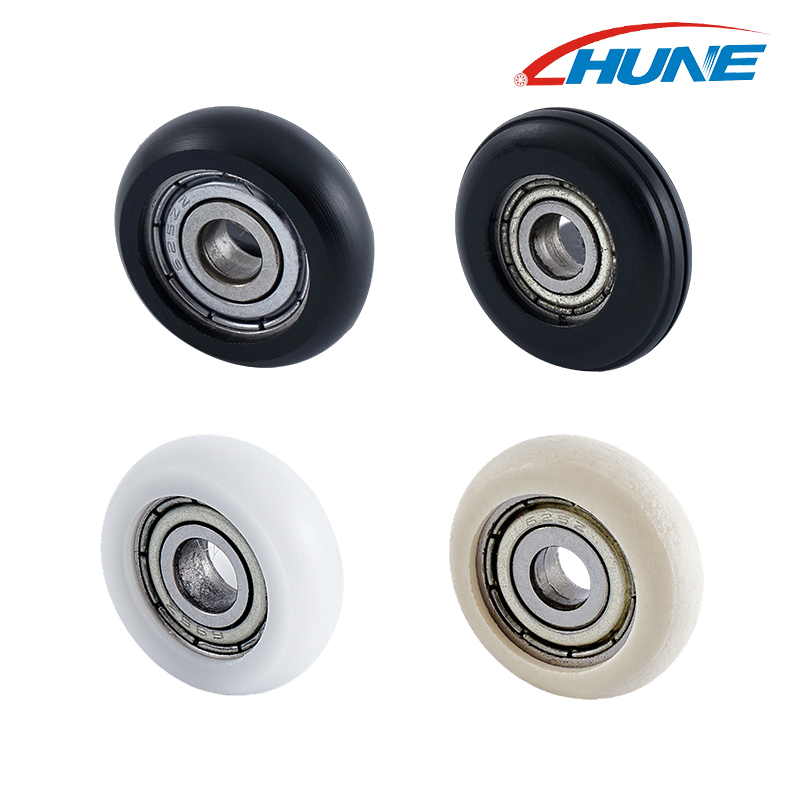

• Flat

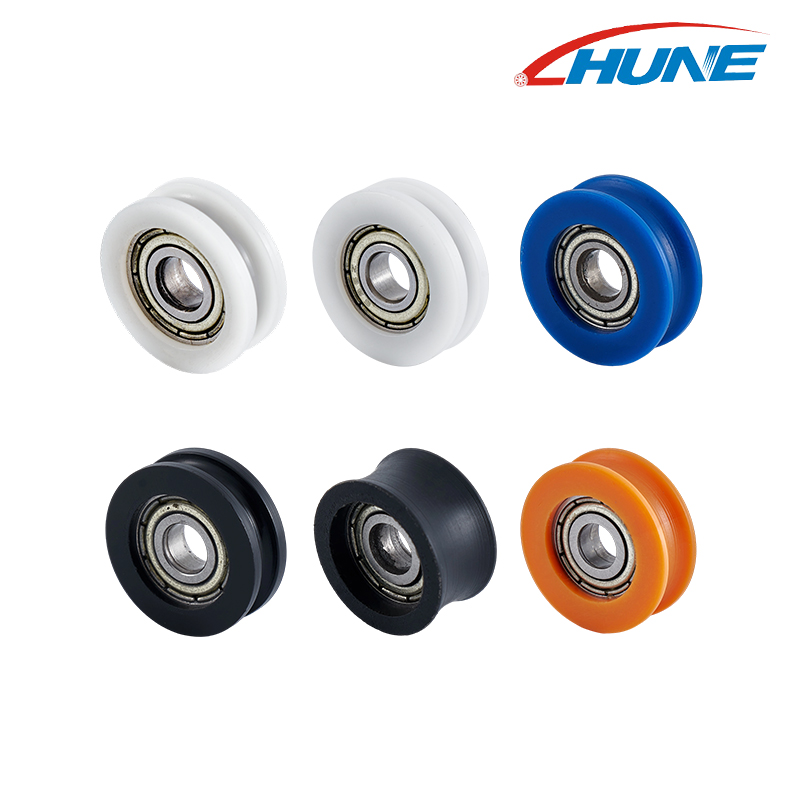

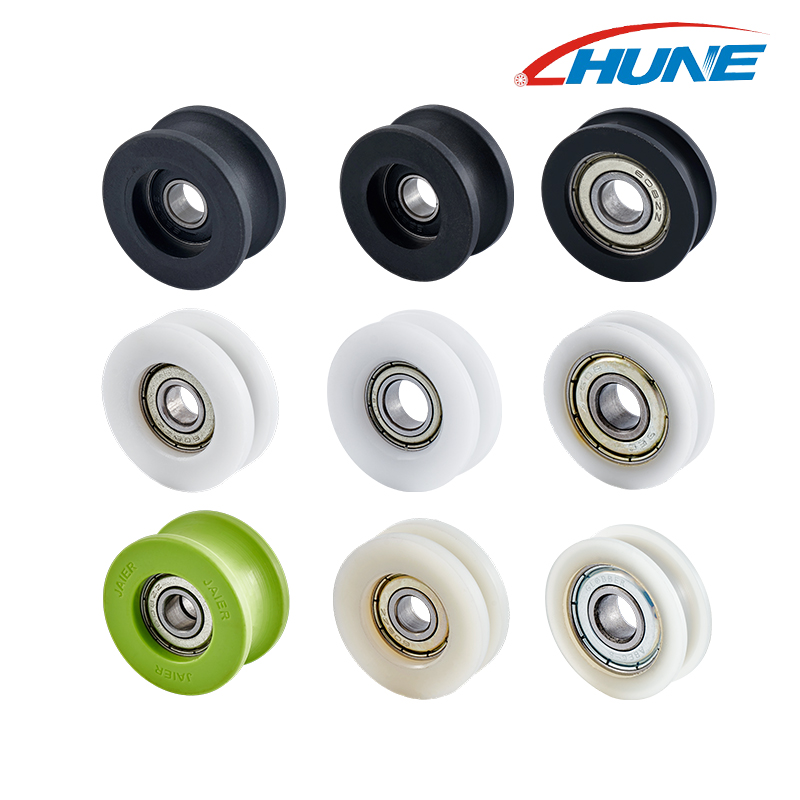

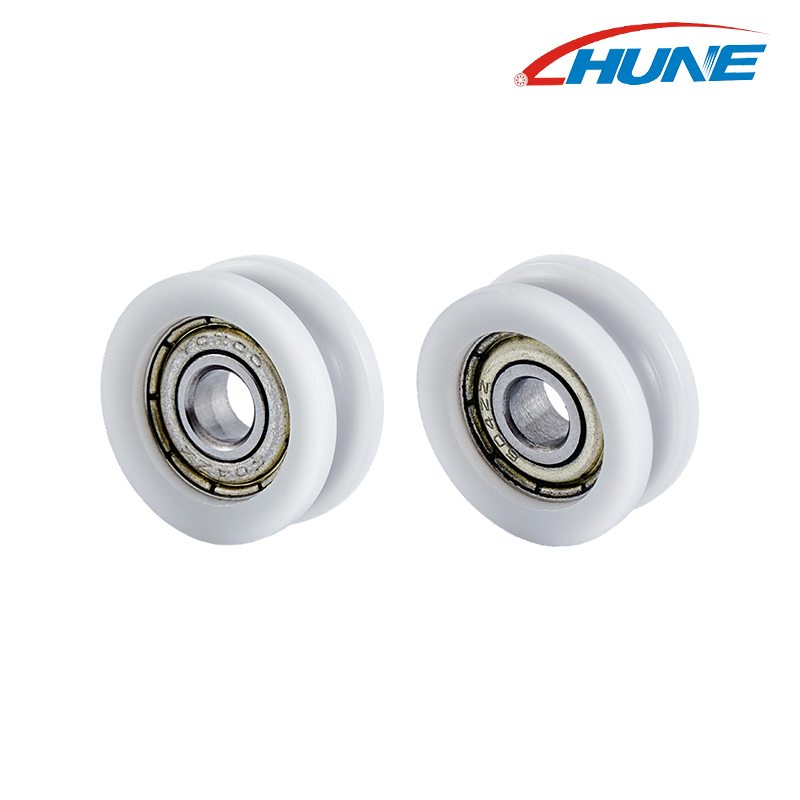

• Grooved
• U-shaped

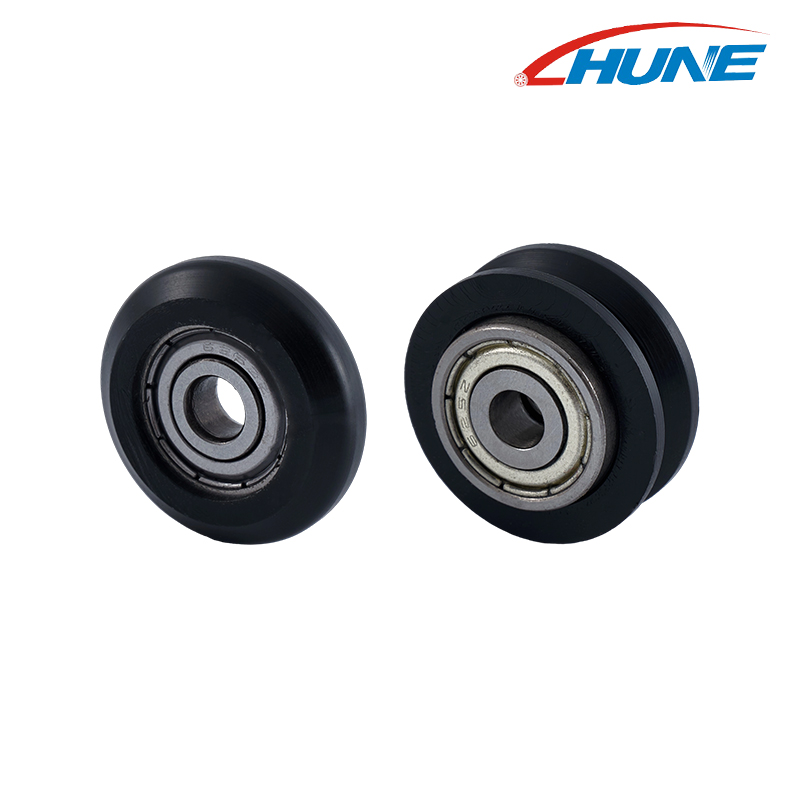

• V-shaped
• H-shaped
• Special guide profiles

The wheel should sit naturally on the running surface. Too much clearance can cause shaking, while a wheel that is too wide may scrape the sides of the rail.

Bearing

The bearing supports wheel rotation. Hune pulley products may use miniature bearings such as:

• 624ZZ
• 625ZZ
• 626ZZ
• 628ZZ
• 608ZZ

Selection is based on the shaft diameter, wheel dimensions, load, bracket structure, and installation space. Shielded bearings help limit the entry of larger particles, although they do not replace normal track cleaning.

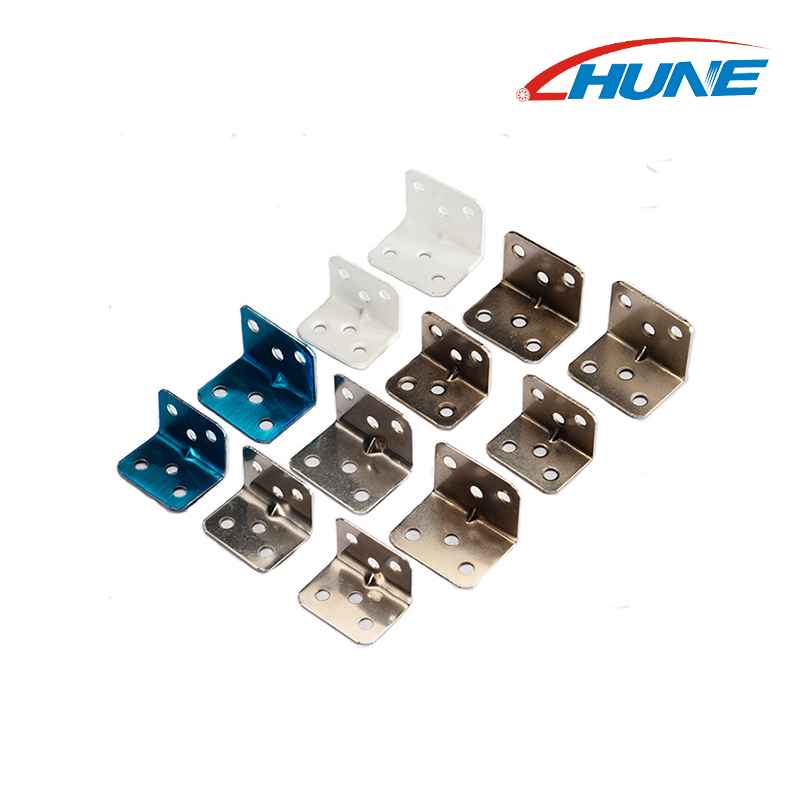

Bracket or Housing

The bracket attaches the roller to the door or supporting structure. Common materials include stamped steel, stainless steel, aluminum, zinc alloy, and engineering plastic.

A bracket must remain rigid under load. If it bends, the wheel may tilt and contact the side of the rail. Overall height and mounting-hole location are particularly important in concealed installations.

Shaft, Screw, or Fastener

The wheel may be fixed with a shaft, shoulder screw, pin, bolt, or rivet. This connection should hold the wheel securely without clamping the bearing too tightly.

Washers, sleeves, and spacers are sometimes added to maintain clearance. They also help prevent side movement or bearing jamming.

Adjustment Structure

Adjustable rollers make it possible to correct door height and panel position after installation. Adjustment may be provided by a threaded screw, slot, eccentric part, or movable bracket.

This feature is useful when the track or frame is not perfectly level. It also helps distribute the load between two rollers. Once the door is aligned, the adjustment mechanism must be locked firmly.

Guide and Anti-Sway Parts

Guide rollers keep the panel moving in the required direction. They may run along the side, bottom edge, or a groove formed in the door.

These parts are commonly used with:

• Hanging doors
• Wardrobe panels
• Glass sliding doors
• Cabinet doors
• Narrow sliding partitions

The guide should limit side movement without creating unnecessary drag.

Material Options for Sliding Door Rollers

Roller materials are selected according to noise, load, wear, corrosion, and track conditions. There is no single material that suits every sliding door.

Nylon

Nylon is tough, wear-resistant, and relatively quiet. It is widely used in door, window, wardrobe, and furniture rollers.

It can be molded around a miniature bearing and formed into different wheel profiles. The material grade should be chosen according to the load and working environment.

POM

POM has a smooth surface and good dimensional stability. It is often used for compact wheels where accurate size and groove shape are required.

Typical applications include Pocket Door Rollers, cabinet rollers, drawer wheels, window rollers, and small appliance pulleys.

Polyurethane

Polyurethane provides a resilient contact surface. It can help absorb vibration and soften the contact between the wheel and rail.

The hardness can be adjusted for different uses. Softer grades usually run more quietly, while harder grades resist deformation more effectively.

Rubber-Coated Materials

Rubber-coated wheels offer grip and soft contact. They are often used as guide wheels or in light-load mechanisms where noise reduction is important.

Coating adhesion and aging resistance should be checked, especially where the wheel is expected to operate frequently.

Stainless Steel

Stainless steel is used where strength, durability, or corrosion resistance is required. It may be used for the wheel, shaft, bracket, or bearing.

Metal wheels create firmer contact than plastic wheels, so the track material and acceptable noise level should be considered before selection.

Bearing Steel, Chrome Steel, Carbon Steel, and Stainless Steel Bearings

Chrome bearing steel is commonly used for miniature bearings. Stainless steel may be selected for humid or corrosion-prone locations, while other steel grades can suit specific product structures.

Bearing life also depends on lubrication, installation accuracy, contamination, and load distribution. Material alone does not determine performance.

Applications of Cavity Sliding Door Rollers

Cavity roller systems are used in architectural doors, wardrobes, furniture, windows, and equipment. The roller design changes according to the panel weight and mounting method.

Pocket Doors and Hidden Sliding Doors

Pocket doors move into a wall cavity and require no swing area. They are often installed in bathrooms, bedrooms, kitchens, offices, and compact interiors.

Pocket Door Rollers are usually fitted to the top of the panel. A lower guide prevents the door from swinging. Because the hardware can be difficult to reach after installation, track alignment and component quality should be checked carefully.

Wardrobe Sliding Door Systems

Wardrobe Sliding Door Rollers may be fitted at the top or bottom. In many systems, the lower wheels carry the load and the upper rollers guide the panel.

Soft-closing hardware can be added to slow the final movement. The door must first be level and run freely; otherwise, the closer may not engage correctly.

Furniture Doors and Cabinet Panels

Furniture Door Roller Wheels are usually compact and light. They are used in cabinets, display units, office storage, kitchen furniture, and sliding partitions.

Nylon and POM wheels are common because they can be produced in small sizes and detailed shapes. Even in light-load applications, wheel accuracy affects noise and movement.

Sliding Windows and Doors

Sliding windows and doors may use plastic wheels, stainless steel rollers, adjustable units, or tandem roller assemblies.

Outdoor and semi-outdoor installations also need to account for dust, moisture, and temperature changes. Corrosion protection and easy adjustment are often useful in these systems.

Hanging Doors and Glass Sliding Doors

Hanging doors rely on the upper track to carry the panel. The rollers and brackets must support the load without allowing the door to tilt.

Glass sliding doors need hardware matched to the glass thickness, weight, and mounting arrangement. Lower guides are normally fitted to control swinging.

Automatic Doors and Motion Systems

Bearing pulleys are also found in automatic doors and industrial movement systems. Stable rolling resistance helps the drive mechanism move more consistently.

For these applications, operating speed, cycle frequency, environmental conditions, and maintenance access should be considered at the design stage.

Performance Benefits in Sliding Door Systems

A well-matched roller system improves movement, guidance, and daily operating comfort. Its performance is closely connected with the condition of the track and the accuracy of installation.

Smooth Sliding Movement

A bearing-supported wheel reduces resistance along the rail. When the track is straight and the load is balanced, the door can be moved with less force.

Dirt, dents, rail joints, or tilted brackets may interrupt the running path and create vibration.

Lower Operating Noise

Noise can come from the wheel, bearing, bracket, panel, or end stop. Nylon, POM, polyurethane, and rubber-coated wheels help reduce direct contact noise.

A soft-closing mechanism can reduce impact at the end of travel. It should not, however, be used to compensate for a badly aligned door.

Stable Door Guidance

Guides and anti-sway rollers keep the panel centered. They can reduce:

• Side-to-side movement
• Door tilt
• Contact with the frame
• Uneven wheel wear
• Soft-closer misalignment

This is particularly important for Concealed Sliding Door Rollers because the panel must enter a limited internal space.

Space-Saving Door Design

A cavity door moves sideways rather than into the room. This leaves more usable space around furniture, walls, and passageways.

Pocket doors are therefore practical for compact apartments, wardrobes, bathrooms, offices, and connecting rooms.

Adaptability to Different Door Materials

Cavity Sliding Door Rollers can be used with wood, glass, aluminum frames, composite boards, and furniture panels.

The mounting structure should be adapted to the panel. A heavy glass door requires stronger support than a small cabinet door, even if both use the same basic rolling principle.

Reduced Wear on Tracks and Hardware

The correct wheel profile spreads the load over the intended running surface. This limits scraping and reduces stress on the track.

Wheel hardness also matters. A very hard wheel may wear a soft rail, while a wheel that is too soft may deform under a heavy door.

How to Select Suitable Cavity Sliding Door Rollers

The roller should be selected as part of the complete door system. Track profile, panel weight, mounting method, and installation space are all relevant.

Door Type and Installation Method

First confirm the application: pocket door, wardrobe, cabinet, window, glass door, hanging door, or automatic system.

It is also necessary to identify the roller’s function. Some rollers carry the panel weight, while others only guide it. These parts should not be treated as interchangeable.

Track Profile

Measure the rail width, depth, groove angle, and running surface. The wheel profile should sit correctly on the track without excessive clearance.

U-shaped, V-shaped, H-shaped, flat, and custom wheels should ideally be checked using the actual track or a detailed section drawing.

Roller Material

The following comparison provides a practical starting point:

Actual performance also depends on wheel size, load, material grade, and track condition.

Bearing Type

Bearings such as 624ZZ, 625ZZ, 626ZZ, 628ZZ, and 608ZZ may be used in different pulley designs.

Selection factors include:

• Bore diameter
• Outside diameter
• Width
• Shaft fit
• Load
• Shield or seal type
• Lubrication
• Available mounting space

A bearing should fit the complete roller structure rather than being selected only by its catalogue number.

Adjustment Requirement

An adjustable roller helps level the panel and correct the gap around the door. It can also improve load sharing between multiple wheels.

For concealed installations, the adjustment screw should remain accessible during mounting and servicing.

Anti-Sway and Soft-Closing Needs

Tall or hanging panels usually need a separate lower guide. A soft-closing system also requires enough travel for the catcher and damper to operate.

The stopper, roller, guide, and soft closer should be positioned as one system so that their movement paths do not conflict.

Installation Space

Check the dimensions of the entire roller assembly, including:

• Wheel diameter and width
• Bracket height
• Shaft projection
• Hole spacing
• Adjustment clearance
• Track depth
• Gap around the panel

Manufacturing and installation tolerances should be included in the available clearance.

Customization Options for Cavity Sliding Door Rollers

Custom Cavity Sliding Door Rollers are often required when standard products do not fit the rail, bracket, or available mounting space.

Common customization items include:

• Nylon, POM, polyurethane, rubber-coated, or stainless steel wheels
• Wheel diameter and width
• Flat, U-shaped, V-shaped, H-shaped, or special profiles
• Bearing size and material
• Upper, lower, side, or concealed brackets
• Mounting-hole position
• Height adjustment range
• Zinc plating, nickel plating, painting, or black finishes
• Wheel color
• Rubber or polyurethane coatings
• Matching guides and tracks

Drawings, samples, and track sections can all be used as development references. Useful project information includes door weight, panel material, roller quantity, mounting direction, and expected operating frequency.

A working sample should be tested with the actual track before mass production, especially when the rollers will carry a heavy panel.

Installation and Maintenance Considerations

Correct installation reduces noise and uneven wear. Regular cleaning is also important because concealed or lower tracks can collect debris over time.

Installation Considerations

Before fitting the door, make sure the rail is straight, clean, and firmly mounted.

During installation:

• Center the rollers on the track
• Keep the panel level and vertical
• Balance the load between supporting wheels
• Avoid overtightening the bearing fastener
• Align the lower guide
• Set the end stoppers
• Check the anti-sway parts
• Test the soft-closing mechanism
• Run the door through its full travel

After adjustment, tighten the locking screws and test the panel several times.

Maintenance Considerations

Routine maintenance is usually simple:

• Remove dust and debris from the track
• Inspect the wheel for cracks or flat spots
• Check bearing rotation
• Tighten loose brackets and screws
• Confirm that the panel remains aligned
• Inspect guides and stoppers
• Test the soft closer
• Replace badly worn rollers

Avoid adding oil without checking material compatibility. Excess lubricant can attract dust and make the track more difficult to clean.

Why Cavity Sliding Door Rollers Matter in Modern Door Hardware

Cavity Sliding Door Rollers make concealed and space-saving door systems possible. They support the panel, control its direction, and reduce friction as the door travels into the cavity.

Their main functions are to:

• Support smooth door movement
• Keep the panel aligned
• Reduce noise and vibration
• Save usable room space
• Work with guides and soft-closing parts
• Suit wood, glass, aluminum, and furniture panels
• Adapt to standard or custom tracks

Good results depend on more than the wheel alone. The bearing, bracket, shaft, track, guide, and installation method must work together.

Zhejiang Huaneng Micro Bearing Co., Ltd. supplies standard and customized Cavity Sliding Door Rollers, Pocket Door Rollers, Sliding Door Track Wheels, Concealed Sliding Door Rollers, and Wardrobe Sliding Door Rollers. Hune can adjust the wheel profile, bearing, material, and mounting structure to suit different sliding door systems.
