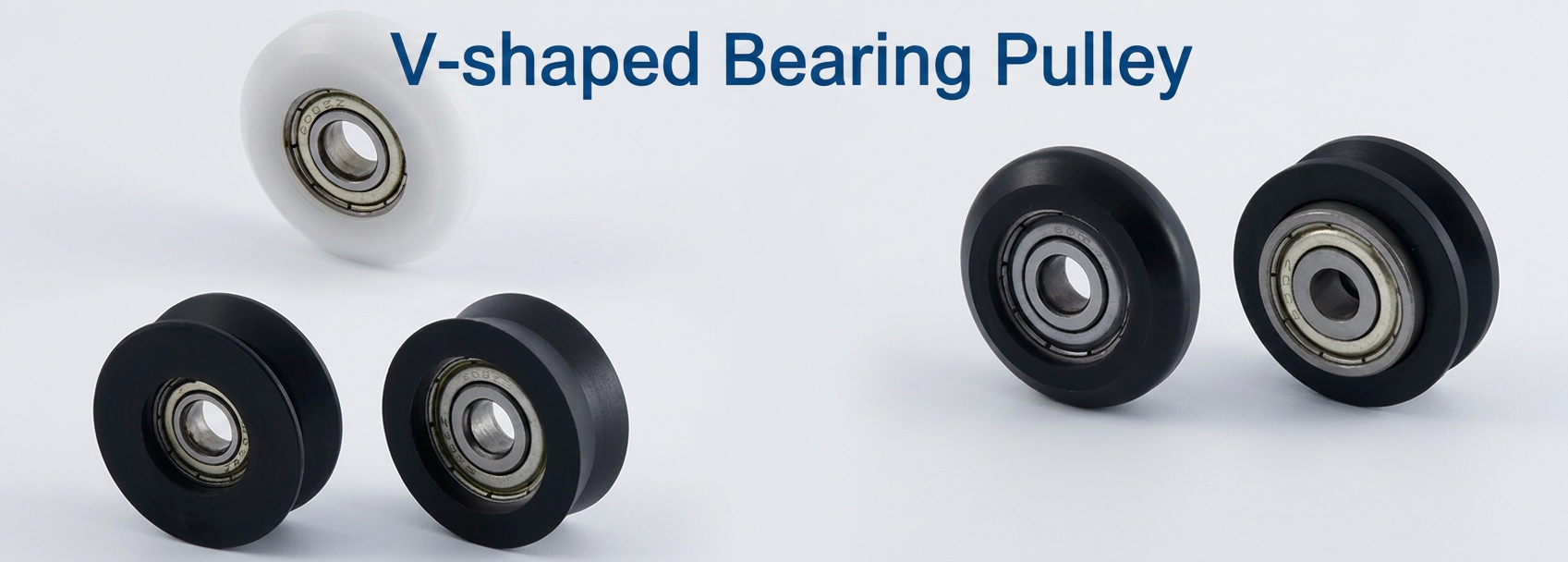

V Groove Pulley with Bearing

A V shaped bearing pulley pairs a V-groove roller profile with an embedded bearing unit at its center. The groove geometry is cut to match V rails, V belts, wire guides, or angled track surfaces, and the bearing handles the friction reduction needed for the wheel to rotate cleanly once load is applied.

Against flat rollers, the V groove design gives better self-centering and holds directional tracking more consistently. The angled sides keep the wheel seated within the rail, limiting side-to-side drift, dampening vibration, and reducing the odds of the pulley slipping off the guide.

Core Functions

The functional scope of a V shaped bearing pulley covers:

• Guiding and supporting sliding or rotational travel
• Lowering friction at the contact point between wheel and rail
• Keeping alignment steady along V-profile tracks
• Adding to overall motion stability
• Bringing down noise and vibration levels
• Slowing wear accumulation on the track or belt
• Assisting smoother power transfer through mechanical assemblies
• Adding to the working lifespan of the full sliding or motion setup

Why It Matters in Hardware and Mechanical Systems

In sliding door or window hardware, a poorly matched roller tends to produce jamming, shaking, noise, derailment, or lopsided wear patterns. In conveyor or equipment contexts, the wrong pulley choice can lead to belt misalignment, wasted energy, added vibration, overheating, and more frequent breakdowns requiring service.

Choosing a well-matched V groove pulley with bearing targets these issues directly, supporting better system stability and cutting down the operational problems that build up across the equipment's service life.

Pulley selection hinges on matching material, groove profile, bearing type, and structural design to the specific application — a distinction that matters for purchasers making sales channel, project, or product development decisions.

Plastic V Shaped Bearing Pulley

Plastic V pulleys keep weight down, cost low, and resist corrosion by default. They're a common fit for light-duty door, window, furniture, and equipment hardware.

Suitable for:

• Sliding window systems
• Cabinet sliding tracks
• Light furniture hardware
• Office equipment
• Small machinery components
• Replacement hardware kits

Advantages:

• Lightweight structure
• Cost-effective production
• Low corrosion risk
• Flexible color options
• Suitable for compact assemblies

Plastic pulleys tend to get selected when load requirements stay moderate and quiet operation outweighs the need for maximum strength.

Nylon V Groove Pulley With Bearing

Nylon V groove pulleys step up wear resistance, toughness, and noise control compared to standard plastic wheels, making nylon one of the go-to materials for sliding and guide rollers.

Suitable for:

• Sliding door hardware
• Sliding window systems
• Wardrobe and cabinet tracks
• Furniture sliding mechanisms
• Interior partition systems
• Medium-duty guide wheel applications

Advantages:

• Good wear resistance
• Low-noise movement
• Strong toughness
• Good compression resistance
• Better fatigue resistance
• Longer service life under repeated movement

Nylon often wins out where smooth movement, durability, and cost control all need to align.

Reinforced Nylon V Pulley Wheel

Reinforced nylon comes into play when the application demands stronger mechanical performance and better resistance to deformation than standard nylon can offer.

Suitable for:

• Heavier sliding panels
• Frequent-use sliding systems
• Commercial interior hardware
• Project-level door and window systems
• Higher-performance furniture hardware

Advantages:

• Higher load capacity
• Better impact resistance
• Stronger dimensional stability
• Longer service potential
• Improved performance under repeated stress

This grade fits scenarios where standard nylon falls short on strength or expected service life.

Metal V Shaped Bearing Pulley

Metal V groove pulleys — produced in steel, stainless steel, zinc alloy, aluminum alloy, or other metal stock — are specified where strength, heat tolerance, or structural rigidity become the priority.

Suitable for:

• Industrial machinery
• Conveyor systems
• Mechanical guide systems
• Heavy sliding structures
• Equipment transmission systems
• High-load hardware assemblies

Advantages:

• Strong load support
• Good structural rigidity
• Higher temperature resistance
• Better dimensional stability
• Suitable for demanding mechanical environments

Humid or corrosion-prone environments call for stainless steel or surface-treated metal variants.

V Shaped Bearing Pulley for Sliding Door Systems

This category is built for door rails, guide tracks, or frame systems where V-shaped contact keeps alignment tight.

Suitable for:

• Sliding doors
• Sliding gates
• Interior partitions
• Glass door guide systems
• Aluminum door systems
• Heavy-duty track structures

Key selection points:

• Door weight
• Track angle
• Groove width
• Bearing load
• Wheel diameter
• Housing or bracket design
• Corrosion resistance

V Shaped Bearing Pulley for Industrial Equipment

Industrial use cases typically call for stable rotation, low friction, energy efficiency, and extended service life.

Suitable for:

• Conveyor belts
• Air conditioning fans
• Office machinery
• Packaging equipment
• Automation equipment
• Small mechanical transmission systems

Key advantages:

• Reduced friction
• Better belt alignment
• Lower vibration
• Improved energy efficiency
• Reduced maintenance frequency

V Shaped Bearing Pulley Material Comparison

Material choice directly affects load capacity, noise level, wear resistance, cost, and application suitability.

A properly engineered V groove pulley with bearing contributes to reduced friction, more stable motion, and better mechanical efficiency across the systems it's installed in.

Reduced Friction

The internal bearing lets the wheel rotate with minimal resistance, meaning the sliding or transmission system needs less input force to keep moving.

This helps:

• Reduce motor load in equipment systems
• Improve manual sliding feel in door and window systems
• Lower wear on rails and belts
• Reduce heat generation
• Extend component life

Better Alignment

The V groove profile keeps the pulley centered along the rail or belt path. Tighter alignment cuts down on side movement and prevents energy from being lost to unnecessary friction.

This matters most for:

• Conveyor belts
• Sliding door tracks
• Mechanical guide systems
• Fan assemblies
• Repeated start-stop equipment

Lower Vibration and Noise

A precisely cut groove, a smooth wheel surface, and a quality bearing combine to cut down vibration during operation. Less vibration protects surrounding components and results in a noticeably better user experience.

Longer Maintenance Interval

Get the material selection, bearing sealing, and dimensional accuracy right, and the entire system can run longer between service intervals.

That reliability carries real weight for construction projects, equipment manufacturers, and hardware product lines where long-term dependability is part of the value proposition.

V shaped bearing pulleys get specified into door, window, furniture, industrial equipment, and project hardware setups whenever the design brief calls for steady guidance, low-friction travel, and dependable motion control.

Common applications include:

• Sliding doors: interior sliding doors, aluminum doors, glass sliding systems, sliding gates, and commercial partitions.
• Sliding windows: aluminum sliding windows, residential and commercial window systems, and replacement window hardware.
• Furniture hardware: wardrobe doors, cabinet tracks, display cabinets, storage furniture, and closet systems.
• Industrial equipment: conveyor belts, air conditioning fans, office equipment, automation equipment, packaging machinery, and small transmission systems.
• Engineering projects: customized sliding or guide systems requiring stable load support, suitable bearing sealing, and corrosion-resistant materials.

Landing on the correct V shaped bearing pulley starts with nailing down the application, track profile, load requirement, working environment, and acceptable noise level — ideally before committing to production runs or ordering replacements.

Key factors include:

• Application: sliding doors, sliding windows, furniture tracks, conveyor systems, fans, office equipment, machinery guides, or custom hardware assemblies.
• Track or belt profile: groove angle, track width, rail height, belt shape, contact surface, and installation clearance all need to line up with the pulley's design.
• Load requirement: account for panel weight, pulley count, belt tension, running speed, and duty cycles.
• Environment: indoor versus outdoor use, humidity, dust, temperature swings, coastal air, chemical exposure, or cleaning agents.
• Noise and smoothness: quiet, even operation comes down to bearing quality, wheel material, lubrication, and dimensional precision.

Providing drawings, samples, dimensioned photos, or track profiles goes a long way toward getting the match right on the first try.

Hune runs OEM / ODM customization programs for V Shaped Bearing Pulley, V Groove Pulley With Bearing, V Pulley Wheel, sliding door rollers, sliding window rollers, plastic bearing pulleys, and nylon pulley wheels.

Customization options include:

• Wheel diameter, width, V groove angle, and groove depth
• Bearing type, precision, lubrication, and sealed or dustproof design
• Plastic, nylon, reinforced nylon, engineering plastic, steel, stainless steel, zinc alloy, or aluminum alloy materials
• Wheel color, shaft size, bracket design, housing material, and surface treatment
• Load capacity, noise performance, and application-specific structure
• Packaging such as plastic bag, inner box, export carton, pallet, wooden case, color box, blister package, barcode label, custom carton mark, or private-label package

From product matching and sample development through structure optimization and packaging guidance, Hune's team covers the full scope for retail, e-commerce, project, and distribution channel needs.

Zhejiang Huaneng Micro Bearing Co., Ltd. produces V shaped bearing pulleys, bearing pulley wheels, sliding door rollers, sliding window rollers, miniature bearings, and customized hardware components.

Hune keeps direct control over the key production steps, including:

• Material selection
• Bearing matching
• Wheel molding or machining
• V groove forming
• Shaft or bracket processing
• Surface treatment
• Lubrication and assembly
• Dimensional inspection
• Rotation and noise testing
• Packaging

Inspection covers wheel size, V groove accuracy, bearing fit, rotation smoothness, noise level, load stability, bracket strength, surface finish, appearance, and packaging condition.

This level of quality control keeps track mismatch, vibration, noise, premature wear, and installation issues from reaching the finished product.

Hune delivers V shaped bearing pulley solutions built for door, window, furniture, equipment, and industrial hardware applications.

Main advantages include:

• Bearing and pulley manufacturing experience
• Plastic, nylon, reinforced nylon, and metal material options
• Standard and custom bearing pulley designs
• Custom V groove profile support
• Sliding door and window roller production capability
• OEM / ODM customization support
• Finished product inspection
• Engineering support for drawings, samples, and application matching
• Packaging support for retail, e-commerce, project, and distribution channels

For product evaluation, send drawings, samples, photos with dimensions, track or belt profiles, material requirements, load requirements, and packaging preferences. Hune can support sample preparation, specification confirmation, quotation, OEM/ODM development, and packaging recommendations for retail, e-commerce, project, and distribution channels.
