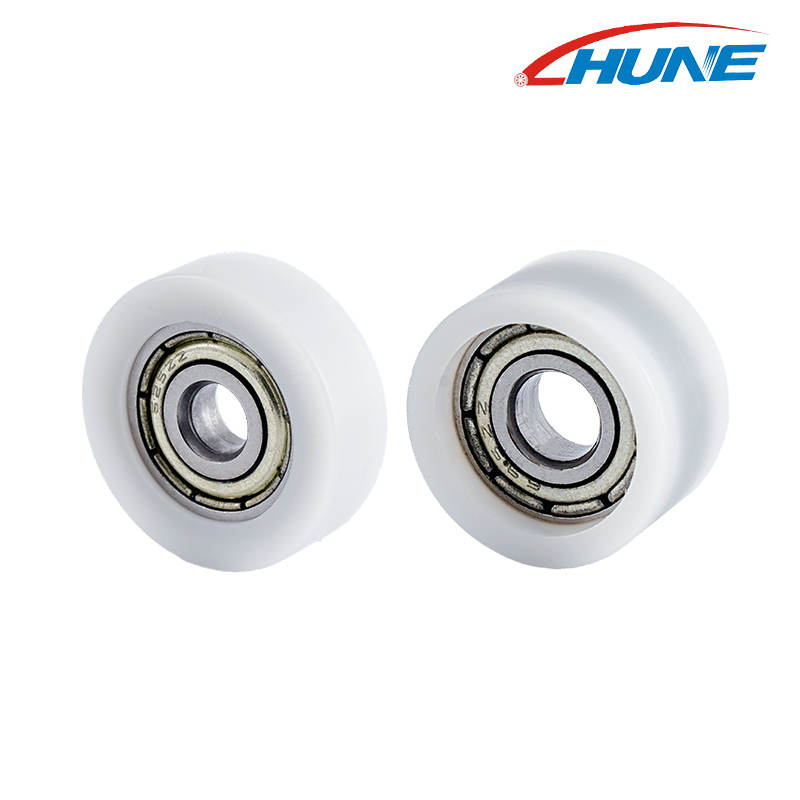

5mm Bore 625ZZ Plastic Idler Pulleys with Shielded Bearing Insert (Quiet, Low‑Drag)
Built for space‑constrained mechanisms, these compact idler pulleys run cleanly on a 5 mm shaft, keeping rolling resistance and operating noise low. The wheel uses a precisely formed polymer body with a shielded bearing insert at the core, supporting steady rotation even in assemblies where vibration, misalignment, or frequent cycling can quickly amplify friction.
To simplify design work and replacements, the series follows a consistent interface: every pulley shares a 5 mm bore and a 5 mm groove width. That means you can switch to a different outer diameter or overall width to suit clearance or load distribution—without changing your shaft size or reworking the mount.
Dimensions & Model Range (Typical)
This lineup covers practical sizes for small mechanisms and guiding tasks:

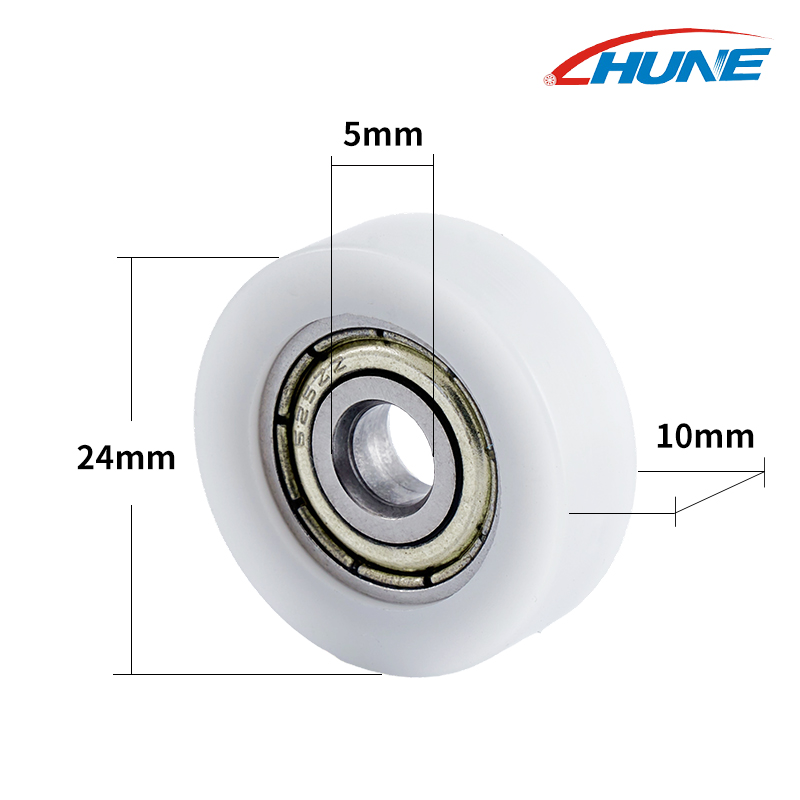

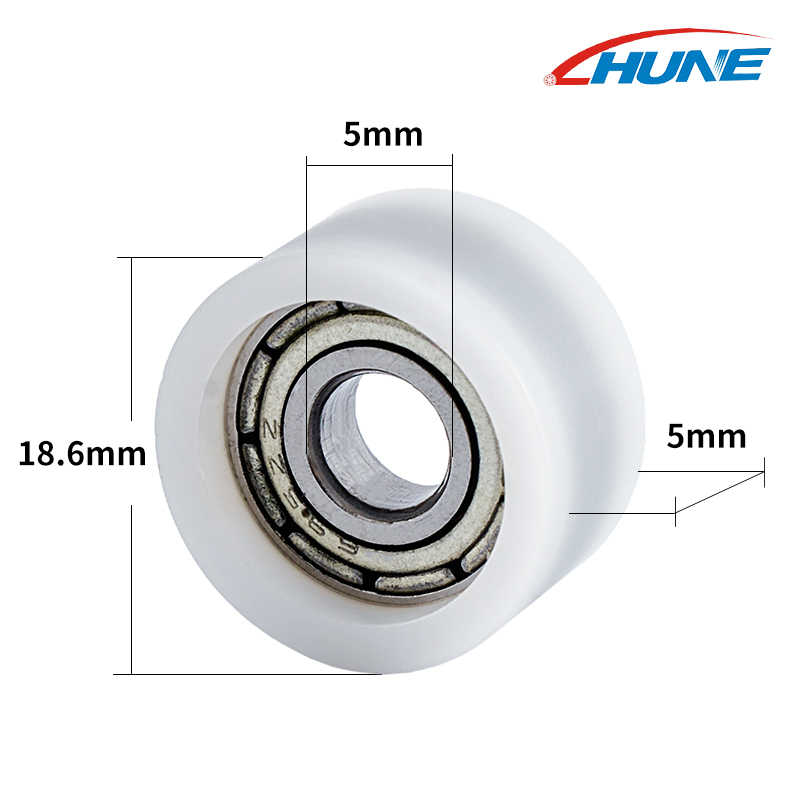

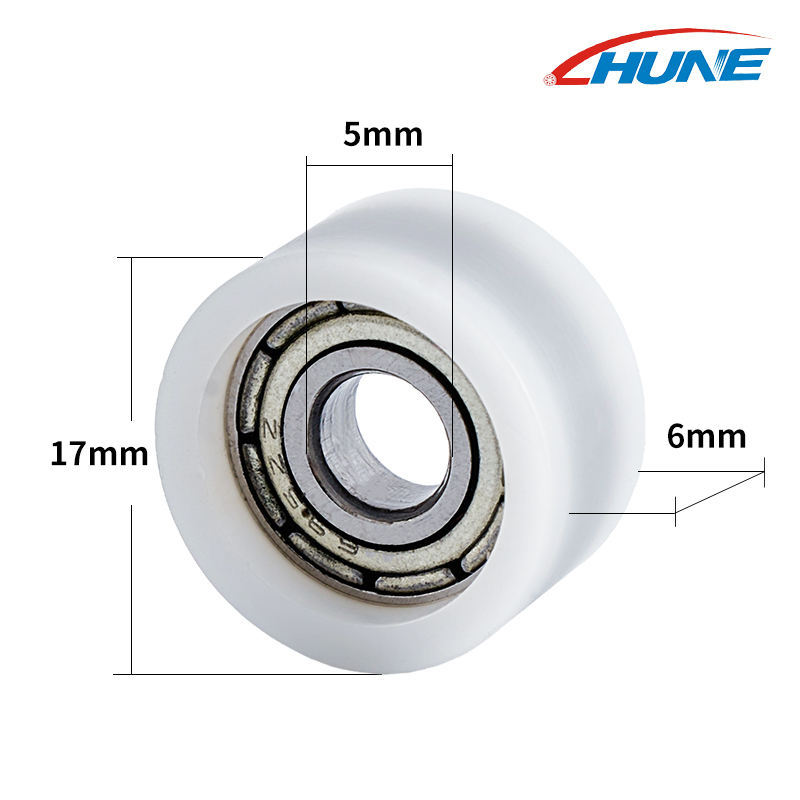

Outer diameter (OD): approx. 15.5–24 mm
Overall width: approx. 5–11 mm

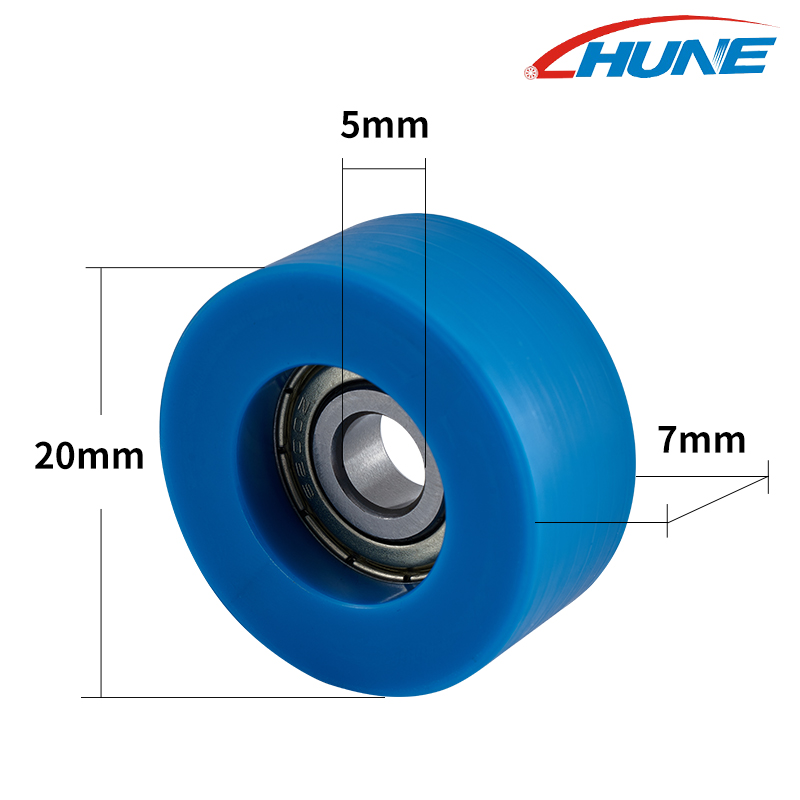

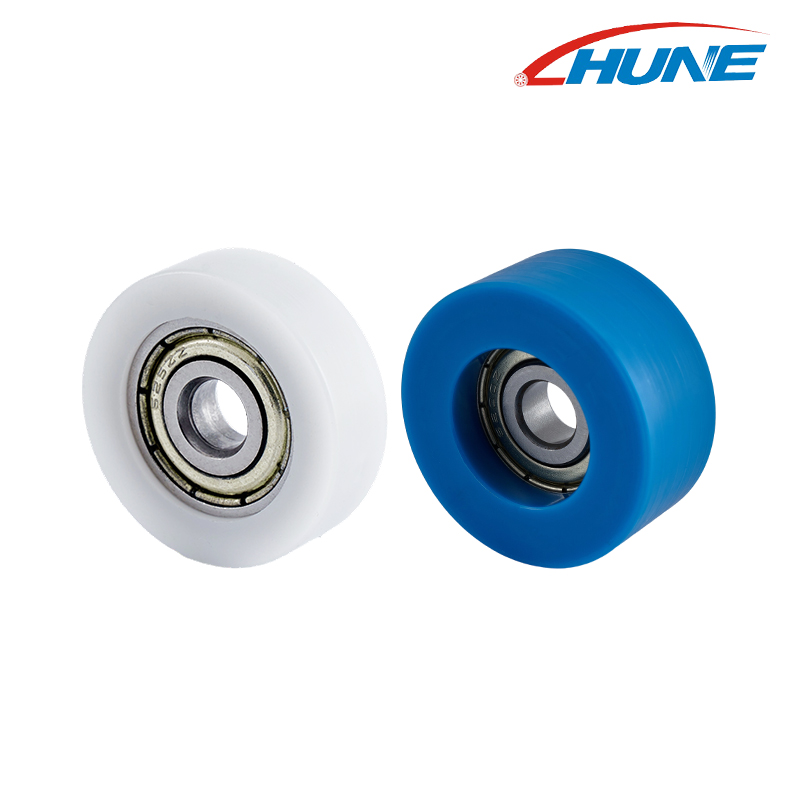

Color/material options: mainly white engineering plastic (commonly nylon or POM/acetal), plus a blue 20 mm OD variant for easy identification and applications where a slightly tougher, more forgiving contact feel is preferred (model dependent)
Materials That Suit Real Use
White nylon / POM (acetal): chosen for low friction, good wear resistance, and clean rolling behavior on guides, belts, and cables.
Blue variant: intended for users who want quick visual sorting, or a wheel surface that feels a touch more resilient under repeated contact.
Where These Pulleys Are Commonly Used
These pulleys are well suited to light-duty idler and guide roles such as:
timing belt routing and tensioning in 3D printers
filament guidance paths
compact linear slides and small motion modules
drawer or small track hardware replacements
robotics builds, CNC jigs, and workshop fixtures
cable guidance and general rolling contact applications
The integrated shielded bearing helps keep fine dust away from the rolling surfaces, supporting smooth rotation over longer service intervals in indoor or semi‑protected environments.
Installation & Fitment
Installation is straightforward: slide the pulley onto a 5 mm shaft, then secure using standard retaining hardware (washers, spacers, clips, collars—depending on your design). For best service life, keep the pulley aligned so it rolls true and avoids unnecessary side loading.
Quick Selection Guide
Choose smaller OD models when clearance is tight or the wrap radius must be compact.
Choose wider models when you want a steadier contact footprint or improved guidance stability.
