F-shaped Bearing Pulley

HOME / PRODUCT / Plastic Bearing Pulley / F-shaped Bearing Pulley / Polyurethane Guide Roller Drawer Slide Rail 626ZZ Bearing Pulley
Product Categories
Hot Products
Huaneng

Over the past few years, we have diligently pursued higher standards to enhance our product quality, aiming to deliver increased convenience and a better user experience.

Contact Us

Polyurethane Guide Roller Drawer Slide Rail 626ZZ Bearing Pulley

○ Material and color can according to customers' requirement.
○ We can make different size as per customers' requirement.
Inquiry WhatsApp Chat

Zhejiang Huaneng Micro Bearing Co., Ltd.+86-15058997617 Zhejiang Huaneng Micro Bearing Co., Ltd. shirley@cnhune.com / +8615058997617
Product Advantages
  • Smooth Operation
    The spacer design ensures smooth rolling and no jamming, even when screws are fully tightened.
  • Silent & High Load Pulley
    Combines quiet bearings with high load capacity for smooth, low-noise performance.
  • Durable Materials
    The nylon-coated outer layer offers strength, toughness, and fatigue resistance.
  • Precision Bearings
    High-quality bearing steel provides quiet, high-speed, and wear-resistant performance.
  • Sealed & Dustproof
    Metal dust cover ensures tight sealing; smooth surface with no burrs for refined quality.
Product Description
The Polyurethane Guide Roller Drawer Slide Rail 626ZZ Bearing Pulley is a compact roller for sliding assemblies where the wheel must fit a defined rail profile and rotate freely within limited mounting space. It can guide a moving component, carry part of its load, or perform both functions, depending on its position in the mechanism.

Potential applications include drawer slide rails, kitchen drawers, cabinet tracks, closet organizers, wardrobe sliding structures, curtain rails, household electrical assemblies, space-saving furniture, and light-duty guide rail systems. It may also be specified for small automation projects and DIY mechanical structures when the load, travel, and installation conditions are known.

The roller combines a plastic or polyurethane contact surface with an integrated 626ZZ ball bearing. The bearing supports rotation around the axle; the outer wheel contacts the rail. Neither part works independently of the mounting arrangement: rail geometry, side clearance, and fastener pressure all affect how the assembled roller moves. Non-standard designs, including an F0622-7 model option, should be confirmed against an approved drawing rather than identified by model name alone.

Product Structure and Components

This drawer slide rail bearing pulley has three essential interfaces: wheel to rail, bearing to axle, and mounting hardware to the sliding structure. Each must fit correctly for the roller to travel without rubbing or binding.

626ZZ Ball Bearing

The integrated 626ZZ Bearing Pulley structure allows the wheel to rotate around its supported axle. ZZ denotes metal shields on both sides of the bearing. The shields help limit entry of some particles, but they are not contact seals and do not make the bearing waterproof.

Bearing selection should account for the load assigned to each roller, operating frequency, axle fit, and exposure to dust or moisture. A wheel that spins freely before installation should also turn freely after its fastener is secured.

Plastic or Polyurethane Wheel Body

A plastic or polyurethane wheel body provides a non-metallic running surface. A PU guide roller may offer more compliant rail contact than a harder plastic wheel, which can help reduce hard-contact sound in a suitable assembly.

Contact behavior depends on the specific material, wheel geometry, load, and rail finish. A softer surface is not automatically the better choice: deformation or concentrated wear can occur if the wheel is not matched to its duty.

F-Shaped Guide Profile

An F-shaped bearing pulley uses a shaped running profile intended for a particular rail geometry. The profile may help position the wheel laterally, but “F-shaped” is not a universal dimensional standard.

For an F-shaped guide roller, compare the wheel drawing with the rail cross-section. Identify which surfaces carry load, which provide guidance, and where clearance is required. A similar-looking wheel can still contact the wrong edge of a track.

Bearing Steel Inner Component

The bearing's metal components transfer load between the rotating wheel and the fixed axle. Bearing material and construction should be specified for the working environment; the polymer outer wheel does not protect exposed metal parts from corrosion.

Smooth Running Surface

A consistent, burr-free running surface helps keep contact on the intended part of the rail. Inspect wheel edges and profile transitions for molding marks or damage that could cause clicking, scraping, or uneven wear.

Mounting Bore

The bearing bore must match the specified axle or mounting arrangement. Check the shaft diameter, supported length, spacer position, and fastener contact faces. Tightening the fastener should secure the assembly without clamping the rotating wheel.

Custom Model Support

F0622-7 can be used as a reference for non-standard development. Wheel diameter, width, guide profile, bearing, material, color, and mounting details should be defined by a sample or approved drawing. The model reference alone should not be used to infer those dimensions.

Key Features

The Polyurethane Guide Roller Drawer Slide Rail 626ZZ Bearing Pulley can be configured for a compact rail system with limited installation space. Depending on the specified construction, relevant features include:

  • Polyurethane Guide Roller, PU guide roller, and PU bearing pulley options for defined rail contact
  • Polyurethane bearing wheel construction for repeated movement under a specified load
  • 626ZZ Bearing Pulley rotation with a double-metal-shielded bearing
  • Drawer slide rail bearing pulley, drawer rail roller, and drawer slide roller configurations for compatible furniture hardware
  • F-shaped bearing pulley and F-shaped guide roller profiles developed from the mating rail
  • Sliding rail roller and guide rail pulley options for compact linear travel
  • Low-noise drawer roller and wear-resistant PU roller design targets, verified in the installed assembly
  • Plastic bearing roller and custom polyurethane roller options for material, color, bearing, and wheel-profile selection

These descriptions identify possible configurations, not guaranteed noise or wear ratings. A completed drawer or rail assembly should be tested across its full travel under its intended load.

Technical Parameters and Custom Options

A replacement roller should be selected using both the existing hardware and the rail it runs on. The table separates the product options from the checks needed to establish fit.

Parameter Specification focus Technical check
Product Type Plastic or polyurethane guide roller Confirm support or guidance role
Bearing Model 626ZZ or specified alternative Check fit, load, and closure
Bearing Material Application-matched metal construction Review moisture exposure
Wheel Material PU, PU-coated material, POM, nylon, or other plastic Match contact and wear requirements
Model Option F0622-7 or custom design Confirm dimensions on the drawing
Wheel Diameter and Width Wheel and installed assembly sizes Check rail and housing clearance
Guide Profile F-shaped or track-specific profile Match rail cross-section
Mounting Bore and Spacer Axle fit and axial clearance Confirm free rotation after fastening
Surface Finish and Color Running finish and appearance Inspect contact surfaces
Load and Noise Requirements Application-specific targets Test in the assembled mechanism
Application Environment Indoor or specified light-duty use Review dust, moisture, and maintenance

Hune / Hunepulley / Zhejiang Huaneng Micro Bearing Co., Ltd. can develop a custom drawer rail pulley from a sample, drawing, or rail measurements. Useful inputs include the rail cross-section, available mounting space, axle details, roller quantity, moving-component weight, and expected movement frequency.

Material and Performance Characteristics

The wheel material influences rail contact, while the bearing and mounting determine whether that wheel can rotate as intended. Selection should consider the complete assembly rather than treating "PU" or "626ZZ" as a standalone performance specification.

Plastic Wheel Body

A plastic wheel body offers a lightweight, non-metallic contact surface for compatible indoor sliding hardware. Its suitability depends on material grade, load, rail finish, and working temperature.

Polyurethane Contact Surface

A polyurethane or PU-coated running surface can provide more compliant contact with a rail. This may help moderate impact sound, but it also makes material hardness, tread construction, and deformation under load important selection points.

626ZZ Bearing

The 626ZZ bearing supports compact rotation. Its metal shields offer limited particle protection inside the bearing; they do not prevent debris collecting on the rail. Clean track conditions and correct axle support remain essential.

Corrosion-Resistant Design

Plastic and PU wheel surfaces do not rust, but the bearing, axle, fasteners, and bracket may still corrode. For humid locations, specify the required protection for all exposed metal components rather than relying on the wheel material alone.

Compact Installation

Compact dimensions are useful only when the complete installed roller fits. Confirm wheel-to-housing clearance, spacer dimensions, rail contact, and free rotation after tightening. Then test travel from end to end to identify local interference.

The Polyurethane Guide Roller Drawer Slide Rail 626ZZ Bearing Pulley is best specified by its rail-matching profile, installed dimensions, bearing and axle fit, and assigned load. With those details established, a plastic or PU wheel can be developed for compatible drawer rails, curtain tracks, furniture hardware, and light-duty guide assemblies without relying on appearance or model number alone.

Product Parameters

Item No. 626zz

Item No. 626zz
Material Bearing -Chrome steel, carbon steel, stainless steel
Plastic part- POM/ Nylon6 /Nylon66 +GF/PU/Rubber
Housing part - Plastic(Nylon)/ Steel/ Zinc alloy die casting / Aluminium profile/ alu. Alloy die casting
Color Original/black/white/Red/ Green/ Orange, or per customers' requirement
Surface Treatment Zinc plated/Nickle Plated/Black treatment/ Painting/Electrophoretic treatment
Features heavy-duty,adjustable,low noise,easy installation,sliding smoothly,long life,standard,customized,etc.
Application Sliding window and door, Sliding accessories, furniture accessories etc.
Packaing Foil bag+Neutral Carton+Pallet, or per customers' requirement
Lead Time According to the order q'ty
After-Sales Service Online Support,Free Spare Parts
HS Code 8302410000
Origin Wenzhou Zhejiang
OEM& ODM Technical drawing or sample is needed
Measurement Method
Weight(g) ID(mm) OD(mm) Height(mm)
Payment Terms
1.100% T/T in advance
2.30% T/T deposit, 70% balance against copy of B/L
3. PayPal
Packaging Details: Standard export packing (plastic bag, carton, and pallet or wooden case), or as per customer's requirements.
Delivery Port: Ningbo / Shanghai
Delivery Time: Normally within 30 days for ready goods or as per customer's request.
ACTUAL PHOTOS
FAQ
  • What are your payment terms?
    What are your payment terms?

    1.100% T/T in advance2.30% T/T deposit, 70% balance against copy of B/L3. PayPalPackaging Details: Standard export packing (plastic bag, carton, and pallet or wooden case), or as per customer's requirements.Delivery Port: Ningbo / ShanghaiDelivery Time: Normally within 30 days for ready goods or as per customer's request.

  • How do you handle shipment?
    How do you handle shipment?

    For small orders: we ship via express (DHL, FedEx, UPS, TNT, etc.).For bulk orders: we ship by sea or by air, depending on your preference.

  • How long is the production lead time?
    How long is the production lead time?

    For in-stock samples: shipped within 2 days.For out-of-stock samples: lead time is within 7 days.For mass production: approximately 15 days after receiving the deposit.

  • What after-sales service do you offer for sliding rollers?
    What after-sales service do you offer for sliding rollers?

    We provide online technical support.  If the issue is caused by a quality defect, we will replace the defective items with new ones.

  • How does your factory ensure quality control?
    How does your factory ensure quality control?

    80% of our staff have over 10 years of experience.  We have a mature and skilled technical team along with a comprehensive quality management system to ensure consistent product quality.

  • Can we print our logo on the products?
    Can we print our logo on the products?

    Yes, we can print your logo on the products based on your design requirements.

  • Can we customize our own color box?
    Can we customize our own color box?

    Yes, if your order quantity reaches 1,000 sets, we can provide customized color box packaging.

  • Do you offer free samples?
    Do you offer free samples?

    Yes, we are happy to provide free samples for you to evaluate the quality.

  • Are you a manufacturer?
    Are you a manufacturer?

    Yes, we are a professional manufacturer specializing in door and window roller pulleys for over 20 years. We also have our own international sales department and handle both production and sales in-house.

  • How long does it take to receive a response after sending an inquiry?
    How long does it take to receive a response after sending an inquiry?

    We will reply to you within 6 working hours on business days.

Related Product
Send Inquiry
Send Message
Zhejiang Huaneng Micro Bearing Co., Ltd.
  • Zhejiang Huaneng Micro Bearing Co., Ltd.
    0㎡
    Plant Area
  • Zhejiang Huaneng Micro Bearing Co., Ltd.
    0+
    Staff
  • Zhejiang Huaneng Micro Bearing Co., Ltd.
    0
    Established in
  • Zhejiang Huaneng Micro Bearing Co., Ltd.
    0+
    Exporting Countries
Zhejiang Huaneng Micro Bearing Co., Ltd.
Zhejiang Huaneng Micro Bearing Co., Ltd. specializes in the development and manufacturing of miniature and medium-sized bearings, non-standard bearings, Polyurethane Guide Roller Drawer Slide Rail 626ZZ Bearing Pulley and pulley systems. With over a decade of industry experience, we offer high-precision processing and responsive customization capabilities.As polyurethane guide roller supplier for furniture and cabinet systems. Our products are widely used in home appliances, industrial equipment, and door/window systems, and are exported to Japan, Korea, Europe, and beyond.
CONTACT US

Industry Knowledge: How Plastic 626ZZ Bearing Pulleys Support Drawer Rails and Household Sliding Systems

A drawer that feels rough may not need a larger roller. It may need a wheel that fits its rail profile, a bearing that remains free after mounting, or a track cleared of debris. In compact sliding systems, small differences in fit can change how the entire mechanism feels.

A plastic 626ZZ bearing pulley combines a polymer wheel body with an internal ball bearing. The wheel runs against a rail or guide surface, while the bearing allows it to rotate around a mounted axle. Depending on its position, the roller may support a moving part, guide its direction, or do both.

This type of plastic or polyurethane guide roller can be specified for compatible drawer slide rails, curtain tracks, closet organizers, household electrical assemblies, furniture systems, and light-duty guide structures. Suitability depends on the actual rail, load, mounting arrangement, and operating environment.

What Is a Plastic 626ZZ Bearing Pulley?

A plastic 626ZZ bearing pulley is a compact, bearing-supported roller with a plastic or PU running surface. Its basic components may include:

  • A plastic or polyurethane wheel body
  • A 626ZZ ball bearing
  • A mounting bore and compatible axle
  • An F-shaped or application-matched guide profile
  • An optional spacer or sleeve
  • A finished running surface

Wheel size, profile, and color can be adapted to a defined assembly. The important distinction is between the wheel's nominal dimensions and the space occupied after the bearing, spacer, and fastener are installed. A replacement roller must fit both the rail and its mounting location.

Why 626ZZ Bearings Are Used in Compact Rollers

A 626ZZ bearing provides bearing-supported rotation within a small wheel assembly. It helps reduce resistance between the rotating wheel and its fixed axle when the bearing is correctly fitted and loaded.

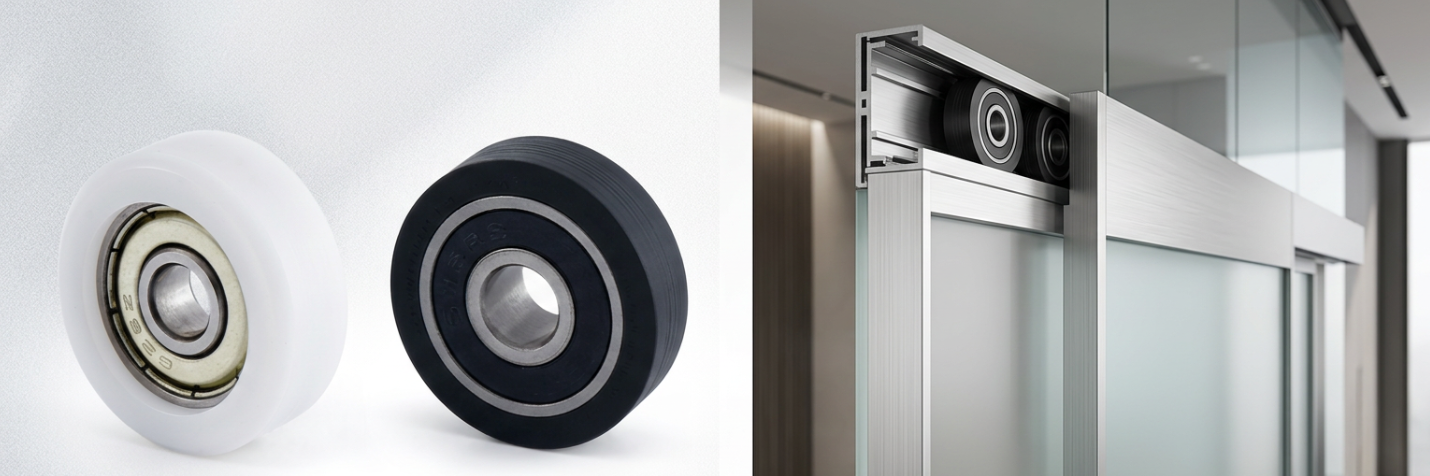

Polyurethane Guide Roller Drawer Slide Rail 626ZZ Bearing Pulle

The "ZZ" designation means metal shields on both sides. These shields help limit entry of some particles into the bearing; they are not contact seals and do not make it waterproof. Dust on the rail can still interfere with wheel travel.

Bearing performance depends on shaft fit, load, alignment, bearing condition, and mounting pressure. If the wheel spins freely before installation but becomes tight after the fastener is secured, check the spacer and bearing contact faces before replacing the bearing.

Role of Plastic and Polyurethane Wheel Materials

Wheel material determines how the roller contacts the rail. Material choice should follow the load, running surface, required clearance, and conditions of use—not a general assumption that a softer wheel is always quieter or gentler.

Plastic Wheel Body

A plastic wheel body provides a lightweight, non-metallic running surface for suitable indoor hardware. Its shape can be developed to match a drawer rail or another guide profile. Wear and dimensional behavior depend on the selected plastic grade and application.

Polyurethane Wheel Surface

A polyurethane wheel surface can provide more compliant contact than a harder plastic. In a suitable assembly, this may moderate hard-contact sound and minor impacts. PU hardness, tread construction, load, and possible deformation should all be considered.

POM and Nylon Options

POM and nylon are alternative engineering-plastic wheel materials. POM can be useful where a consistent running profile is important; nylon is often selected for its toughness. The choice should be checked against rail finish, humidity, load, and movement frequency.

Why Guide Profile Matters

The guide profile determines where the wheel touches the rail. F-shaped, H-shaped, U-shaped, V-shaped, and flat rollers serve different track geometries. The profile name alone does not define its dimensions.

A mismatched profile may put load on a wheel edge, leave excessive side clearance, or cause the wheel to rub its housing. These conditions can produce wobble, noise, uneven wear, or jamming. For an F-shaped guide roller, compare the wheel's running faces and clearances with a measured rail cross-section.

Applications in Household and Light-Industrial Systems

These applications use similar roller principles, but the duty of each wheel differs.

Drawer Slide Rails

A drawer slide rail bearing pulley may support part of the drawer load or help maintain its travel path. Check the complete slide design before selecting a replacement.

Household Electrical Assemblies

Sliding covers and small guided parts may use compact rollers where installation space is limited. Mounting security and clearance around nearby components must be verified.

Curtain Rail Systems

A roller may guide a curtain carrier along a matching track. Rail bends, joints, and accumulated dust can affect its travel.

Closet Organizers

Sliding baskets, trays, and storage panels can use guide rollers where the rail and loaded structure provide suitable support.

Space-Saving Furniture

Movable shelves and concealed panels may need a compact wheel profile, but the bearing, fastener, and spacer must also fit within the available space.

Small Automation Projects

A guide rail pulley can be considered for light-duty carriages or guided modules when load, speed, rail shape, and operating cycles are specified.

Selection Factors for Drawer Rail Bearing Pulleys

Start with the rail and mounting arrangement, then select the bearing and wheel material. The following checks help prevent a roller that fits on the axle but runs poorly in the track.

Selection factor Why it matters Technical checkpoint
Wheel Diameter Affects installed height Check rail and housing clearance
Wheel Width Affects lateral fit Check complete installed width
Bearing Model Determines bearing fit Verify 626ZZ or specified alternative
Wheel Material Affects rail contact Select plastic, PU, POM, or nylon
Guide Profile Determines running surfaces Measure the rail cross-section
Mounting Bore and Spacer Affect free rotation Check axle and fastener contact
Load and Frequency Effect wheel and bearing duty Identify each roller's assigned load
Environment Affects material choice Review dust, humidity, and cleaning access
Custom Model Need Addresses non-standard hardware Provide a sample or approved drawing

Installed testing is the final check: the roller should remain secure, rotate freely after tightening, and travel along the full rail without side rubbing.

Common Problems and Technical Causes

A sliding problem can originate in the pulley, rail, mounting, or moving structure. Inspect the complete path before replacing parts.

Drawer Movement Feels Rough

Check the rail for debris or damage, then inspect wheel condition, bearing rotation, and drawer alignment. Roughness at one point in the travel may indicate a local rail defect.

Pulley Produces Noise

Possible causes include a worn bearing, loose mounting, wheel-edge contact, debris, or a profile that runs on the wrong part of the track.

Roller Jams in the Track

Check wheel and assembly width, rail deformation, guide-profile fit, and clearance around the housing. Do not force the drawer past a jam.

Wheel Surface Wears Unevenly

Uneven wear can point to side loading, misalignment, concentrated edge contact, excessive load, or unsuitable wheel material.

Bearing Rotates Poorly

Inspect for bearing damage or contamination, but also compare rotation before and after mounting. An incorrect spacer or mounting pressure can restrict an otherwise serviceable wheel.

Installation Guidelines

Correct installation keeps the wheel on its intended running surface without restricting the bearing.

  • Clean and inspect the rail before fitting the roller.
  • Compare the wheel profile with the rail cross-section.
  • Check the bearing, axle, and spacer fit.
  • Secure the mounting hardware without clamping the rotating wheel.
  • Confirm side clearance and alignment.
  • Test the full travel under the intended load.
  • Recheck for scraping, clicking, or tight spots after initial use.
  • The fastener should be secure, and the roller should still turn freely. Both conditions matter.

Maintenance and Replacement Signals

Remove dust and particles from the rail, then inspect the wheel's running surface and profile edges. Check for cracks, uneven wear, side wobble, loose brackets, and rough bearing rotation.

Replace a roller when confirmed damage affects guidance or movement. If a new roller quickly develops the same noise or wear pattern, investigate the rail, load, and alignment rather than continuing to replace wheels.

When Custom Plastic Bearing Pulleys Are Needed

A custom plastic bearing pulley may be required when a standard roller has the wrong guide profile, wheel width, bore, spacer, or material. Options include a modified F-shaped guide profile, PU hardness, POM or nylon wheel body, alternative bearing, housing arrangement, or color.

A non-standard reference such as F0622-7 should be confirmed against a drawing or sample; the model name alone is not enough to establish dimensions. For development, provide the rail cross-section, mounting details, available space, moving load, and expected use conditions.

FAQ: Plastic 626ZZ Bearing Pulleys

Where are plastic 626ZZ bearing pulleys used?

They can be used in compatible drawer slide rails, curtain rails, closet organizers, household electrical systems, furniture hardware, and light-duty guide mechanisms.

Why is a 626ZZ bearing used in drawer rail rollers?

It provides compact bearing-supported rotation between the wheel and its mounted axle, provided the bearing fit and load are suitable.

What does the ZZ shield mean?

ZZ means metal shields on both sides of the bearing. They help limit entry of some particles but are not waterproof contact seals.

What is the benefit of a polyurethane wheel surface?

It can provide more compliant rail contact and may reduce hard-contact sound. Performance depends on PU hardness, load, and track condition.

How do I choose a drawer slide rail bearing pulley?

Match the rail profile, wheel and installed dimensions, bearing, axle, spacer, load, and environment. Verify the result through full-travel testing.

What causes a drawer rail pulley to make noise?

Common causes include track debris, bearing roughness, loose mounting, edge rubbing, profile mismatch, and misalignment.

Can plastic bearing pulleys be customized?

Yes. Wheel size, material, profile, bearing, spacer, bore, color, and PU hardness can be specified from drawings, samples, and application data.

When should a plastic guide roller be replaced?

Replace it when confirmed cracks, profile wear, bearing damage, or mounting defects affect movement. Inspect the rail before fitting the replacement.

Can a plastic 626ZZ bearing pulley be used in small automation systems?

Yes, in a suitable light-duty design after checking load, speed, movement cycles, rail geometry, and installation clearance.

A plastic 626ZZ bearing pulley supports smooth movement only when its wheel profile, bearing, axle, and rail fit together. Hune can develop Polyurethane Guide Roller, PU guide roller, 626ZZ Bearing Pulley, drawer slide rail bearing pulley, F-shaped guide roller, sliding rail roller, guide rail pulley, plastic bearing roller, custom polyurethane roller, and custom drawer rail pulley configurations from drawings, samples, rail dimensions, and defined application requirements.

Message Feedback
